Intro | Features | Installation | Windows Options | e-machine | Conclusion

Windows Options

After the program was installed and launched I was greeted by a very nicely done GUI consisting of 2 panels, on the left panel is a listing of AMIDiag's main functions consisting of System Information, Diagnostics, Trouble Ticket, Interactive Diagnostics and Additional Tools.

System Information
System Information provides detailed hardware and software system information for the following items: See Figure 4.

ACPI
BIOS
CDROM/DVD
Driver
Drives
Floppy
Hard Disk
IDE
Internet Info
Keyboard

Memory
Modem
Motherboard
Mouse
MultiMedia
Network
OS Information
Parallel Ports
PCI
Printer

Process
Processor
Resource
SCSI Misc
Serial Ports
System Files
USB
Video
Zip/Ls120

AMIDiag 2 System Information
Figure 4. AMIDiag 2 System Information

Diagnostics
Allows you to test various system hardware and configuration environments. For each of these tests, two different levels are provided. Basic diagnostics tests all the common or regular features and Extended diagnostics tests dig a little deeper to any special features of the device. The diagnostics can also be remotely administered. See Figure 5.

AMIDiag provides diagnostics for the subsystems shown in below.

AGP
Audio
CDROM/DVD
Floppy
Hard Disk
Memory
Modem
Networks
Parallel Ports
Processor
Serial Ports
Third Party CDM Compliant Tests
Video
Zip/Ls120

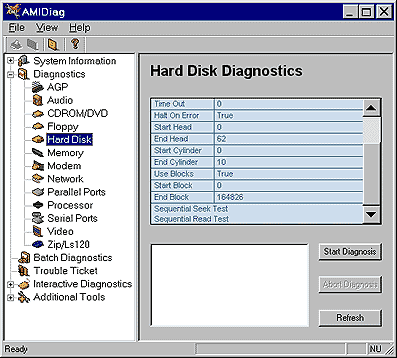

AMIDiag 2 Diagnostics
Figure 5. AMIDiag 2 Diagnostics

Trouble Tickets
Trouble tickets are used by much of the technical support industry to help
diagnose problems when it is not possible for the technician to be physically in front of the computer. The more they know about the system, the easier it is to troubleshoot the problem.

AMIDiag provides a Trouble Ticket generator. The AMIDiag Trouble Ticket generator will create an HTML and XML file containing all system information, results from the System Diagnostics, and the Interactive Diagnostics. The information can be accessed by a user and sent via email to a system administrator, product manufacturer, and so on.

Interactive Diagnostics

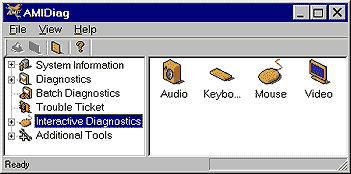

These tests diagnose the devices that need your interaction and response to what is seen or heard as the tests are conducted. They include mouse, keyboard, video and audio. See Figure 6.


Figure 6. Interactive Diagnostics

Additional Tools
The user can execute some of the common Windows tools from within AMIDiag for Windows, with the click of a button. There are ten default Additional Tools Icons.

AMIDiag Log Viewer
Backup Manager
Disk Cleanup
Dr Watson
Explorer

MS SysInfo
Performance
Program Manager
Registry Editor
Task Manager

Each of these main functions can be clicked and opened to show the Tree version of what is displayed on the right. Upon clicking on one of the left icons the result is than displayed on the panel on the right, simple enough...
